> >>LWA-LB II, Long wire 1,5-30 MHz + Choke Balun

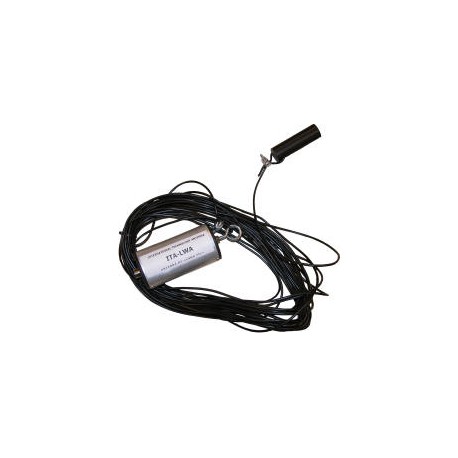

LWA, antenne "long fil" View larger

LWA-LB II, Long wire 1,5-30 MHz + Choke Balun

LWA-LBII

New product

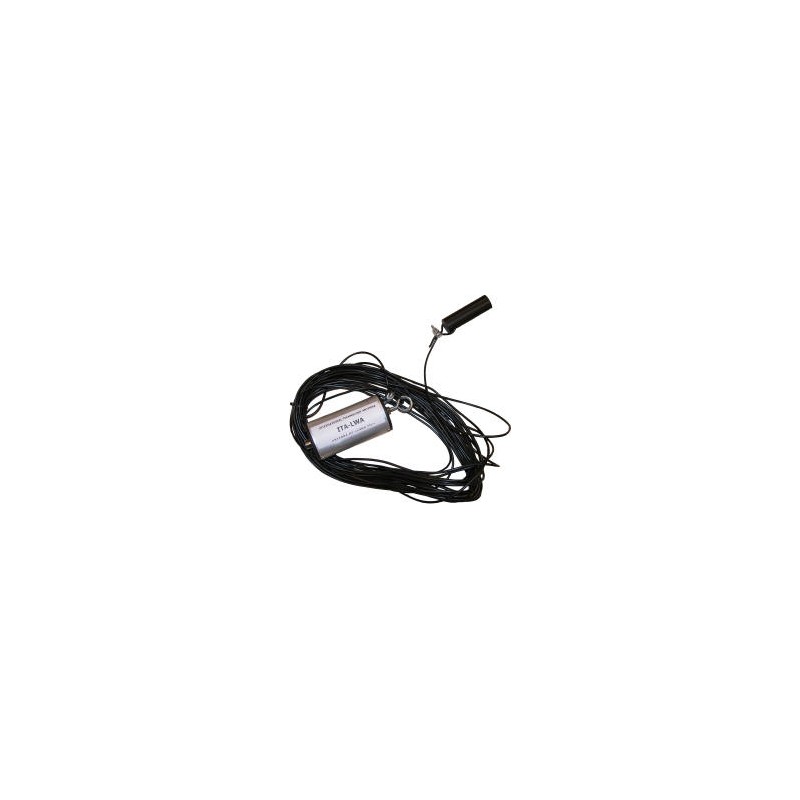

LWA-LB II, HF Long wire Wideband antenna with Choke Balun integrated, is perfect for the garden or portable SSB/CW operations ; week-end, holidays... Length: 40 m in 2.5 mm2 copper wire in black sheath with insulator and suspension hook. Frequencies: 1,5 to 30 MHz. Admissible power: 500 W (PEP). Works without a tuner on most bands.

LWA series ITA antennas do not contain MTFT or Unun of 9:1 ratio.

More details

209,90 € tax incl.

Add to wishlist

Data sheet

Bande de fréquences - Bands1,5-30 MHz
Diamètre des éléments - Elements diameter2,5 mm2
Puissance admissible - Max. power500 W PEP
Impédance - impedance50 ohms
Connecteur - ConnectorSO-239 (PL)
Longueur - Lenght40 m
Diamètre - Diameter60 mm
Poids - Weight1,5 kg

More info

Long Wire Antenna – Simple, Versatile & Rugged

Designed for radio amateurs seeking an efficient and easy-to-use solution, our 40 m Long Wire antenna covers the 1.5 to 30 MHz range. It works perfectly with built-in automatic antenna tuners and offers a low SWR across multiple amateur bands, reducing the need for an external tuner.

Version with integrated choke-balun.

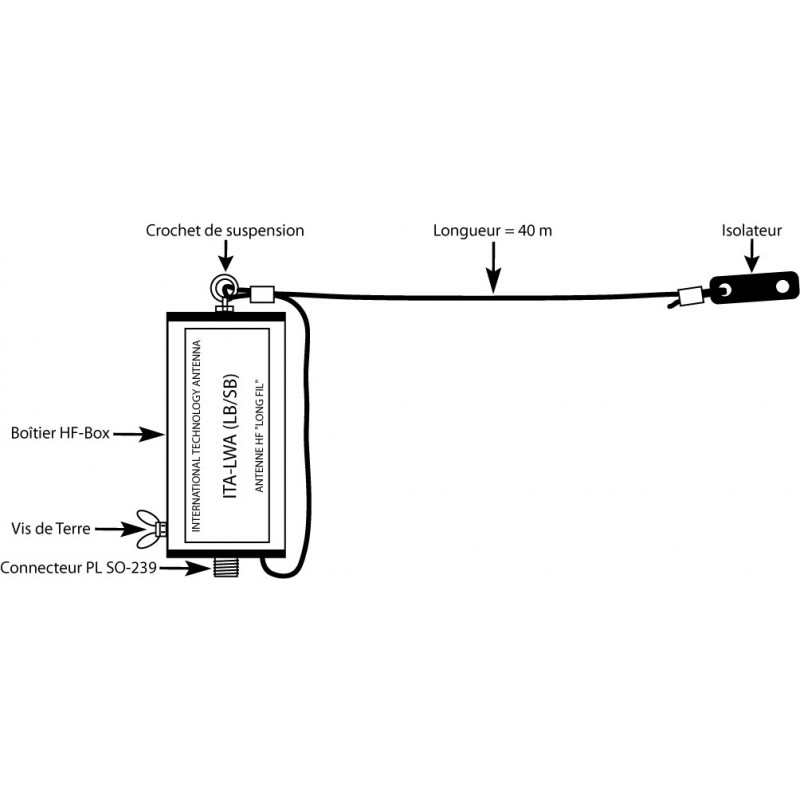

It handles up to 500 W PEP in SSB and features a quiet housing design, greatly reducing background noise and interference for clearer reception. Built to last, it includes a 60 mm aluminum box, insulated 2.5 mm² copper wire, and a Teflon-insulated female PL connector. The housing is grounded for optional earthing.

No tuning required — this antenna is ready to use, whether in a fixed station or portable setup. A suspension hook makes temporary installations quick and easy, perfect for weekends, holidays, or expeditions.

A reliable, high-performance HF antenna for versatile use !
